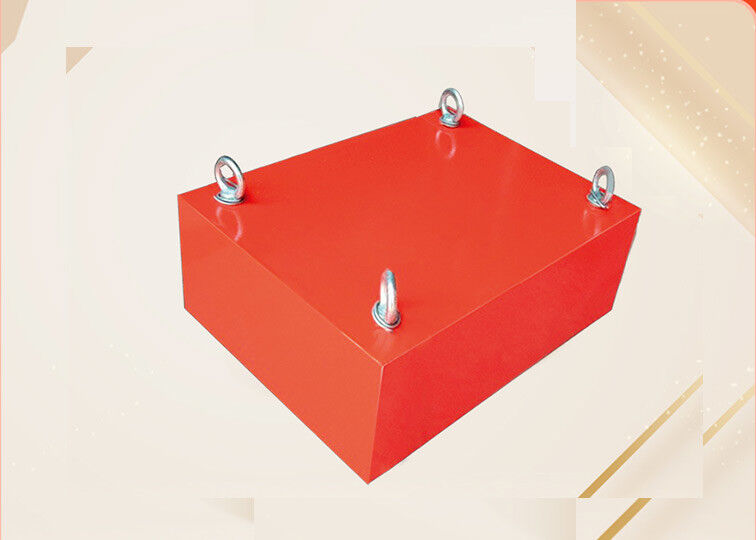

Suspended Permanent Magnet Iron Remover with No Power Required Ultra-Strong Magnetic Field and Stable Performance

No Power Required Permanent Magnetic Separator,Ultra-Strong Magnetic Field Dry Powder Magnetic Separator,Stable Performance Suspended Permanent Magnet Iron Remover

Ultra-Strong Magnetic Field Dry Powder Magnetic Separator

Stable Performance Suspended Permanent Magnet Iron Remover

مكان المنشأ:

الصين

اسم العلامة التجارية:

اتصل بنا

اطلب اقتباس

تفاصيل المنتج

اسم المنتج:

فاصل مغناطيسي كهربائي للمسحوق الجاف

القوة المغناطيسية:

6,000–16,000 غاوس (قابل للتخصيص)

معدل demagnetization:

≥5% في 3 سنوات؛ ≥3% في 10 سنوات

خلفية قوة المجال المغناطيسي:

3,500~7,500 غاوس

تثبيت:

معلقة فوق سيور ناقلة. يدعم تكوينات متعددة المراحل

إبراز:

No Power Required Permanent Magnetic Separator,Ultra-Strong Magnetic Field Dry Powder Magnetic Separator,Stable Performance Suspended Permanent Magnet Iron Remover

Ultra-Strong Magnetic Field Dry Powder Magnetic Separator

Stable Performance Suspended Permanent Magnet Iron Remover

شروط الدفع والشحن

الحد الأدنى لكمية

الأسعار

300,000

تفاصيل التغليف

دعم قاعدة + حالة خشبية

وقت التسليم

من 2 إلى 4 أسابيع

شروط الدفع

T/T ، BA

القدرة على العرض

قوي

منتجات ذات صلة

فيديو

Suspended Permanent Magnet Iron Remover with No Power Required Ultra-Strong Magnetic Field and Stable Performance

احصل على أفضل سعر

فيديو

فاصل كهربائي مغناطيسي بالمسحوق الجاف مع إزالة الحديد بالمجال العالي، وتحكم تلقائي PLC، وتبريد بالزيت لصناعات الليثيوم والأغذية

احصل على أفضل سعر

فيديو

فاصل مغناطيسي دائم من نوع الدرج لإزالة الحديد من المساحيق الجافة عالي الكفاءة مع تشغيل خالٍ من الصيانة ومغناطيس NdFeB عالي الأداء

احصل على أفضل سعر

فيديو

منفصل مغناطيسي لل مسحوق الجاف عالي الكفاءة مع سلسلة مزدوجة دائمة وإلكترونية مغناطيسية وتصميم مضاد للالتصاق

احصل على أفضل سعر

اتصل بنا

اتصل الآن

وصف المنتج

Product Title

Suspended Permanent Magnet Iron Remover | Energy-Efficient Industrial Magnetic Separator, No Power Required, Efficient Removal of Ferrous Impurities

Core Advantages

No Power Required, Energy-Saving & Cost-Effective

Working entirely on the magnetic field of high-performance permanent magnets, it requires no external power supply, eliminating operating costs and the risk of failure during power outages. It provides consistent performance with zero energy consumption.
Ultra-Strong Magnetic Field for High Removal Efficiency

Built with rare-earth NdFeB magnets, it delivers a magnetic field strength of 6,000–16,000 Gauss, effectively capturing even fine ferrous particles. It is ideal for industries like lithium battery materials, mining, food processing, and chemicals, ensuring high material purity.
Stable Performance with a Long Service Life

The magnets have extremely low demagnetization rates: ≤5% in 3 years and ≤3% over 10 years. The magnetic field remains constant with no difference between cold and hot states. Its robust, hermetically sealed design withstands harsh environments, including dust, moisture, and high temperatures up to 350°C.
Low Maintenance & High Adaptability

Featuring a simple, wear-resistant structure, it minimizes maintenance costs and downtime. It supports both local manual and centralized control, can be interlocked with conveyor belts, and is adaptable to various installation points, with custom designs available for special conditions.

Applications

Widely used for removing ferrous contaminants from dry powder, flake, and granular materials. Key industries include:

Lithium Battery Materials: Lithium carbonate, lithium hydroxide, lithium iron phosphate, and ternary precursors.
Mining & Metallurgy: Coal and ore processing lines.
Chemical & Ceramics: Purification of chemical raw materials and ceramic powders.
Food & Plastics: De-ironing of food ingredients and plastic pellets.

Technical Parameters

Item	Specification
Magnetic Strength	6,000–16,000 Gauss (customizable)
Temperature Resistance	60°C to 350°C (customizable)
Demagnetization Rate	≤5% in 3 years; ≤3% in 10 years
Housing Material	Stainless Steel / Carbon Steel (optional)
Surface Coating	ETFE / PTFE / Nano-Ceramic Coating (optional)
Installation	Suspended over conveyor belts; supports multi-stage configurations

Selection Guide

By Removal Efficiency & Working Conditions

High-Purity Applications: Choose high-strength models for ports, power plants, and lithium battery production.
Harsh Environments: Select fully sealed, high-temperature-resistant units for dusty, humid, or high-temperature conditions.

By Installation Position

Head of Conveyor: Best for maximum efficiency as materials are in a loose state.
Mid-Conveyor: Use with non-magnetic idlers to improve performance.

Multi-Stage Removal Setup

For cascading systems, the downstream unit must have a stronger magnetic field than the upstream one to ensure effective filtration.

FAQ

Q1: Does this iron remover need to be powered? Will it fail during a power outage?

A1: No external power is needed. It operates solely on permanent magnetism, so its performance is unaffected by power outages, making it safe and reliable.

Q2: How small a ferrous particle can it capture?

A2: With a field strength of up to 16,000 Gauss, it effectively removes even fine magnetic impurities, meeting the strict purity standards of industries like lithium batteries and food processing.

Q3: Can it work in high-temperature or humid environments?

A3: Yes. Constructed with high-temperature-resistant magnets and a sealed housing, it operates reliably from 60°C to 350°C. Optional anti-corrosion coatings protect against moisture and dust, ensuring a long service life of over 10 years.

Q4: Is installation complicated? Can it integrate with existing production lines?

A4: Designed for simple suspension installation, it fits at the head or middle of conveyor belts. It supports flexible control options (local or centralized) and can be customized to match specific on-site conditions.

Q5: How should I configure multiple units for a multi-stage system?

A5: We recommend a coarse removal + fine removal setup, where each subsequent stage has a stronger magnetic field. This gradient filtration ensures all ferrous contaminants are effectively removed.

Closing

The Suspended Permanent Magnet Iron Remover offers a highly efficient, reliable, and cost-effective solution for industrial de-ironing. With its core advantages of zero energy consumption, high magnetic strength, and long lifespan, it meets the demands of various industries. Customized designs are available; please contact us for a tailored solution.
